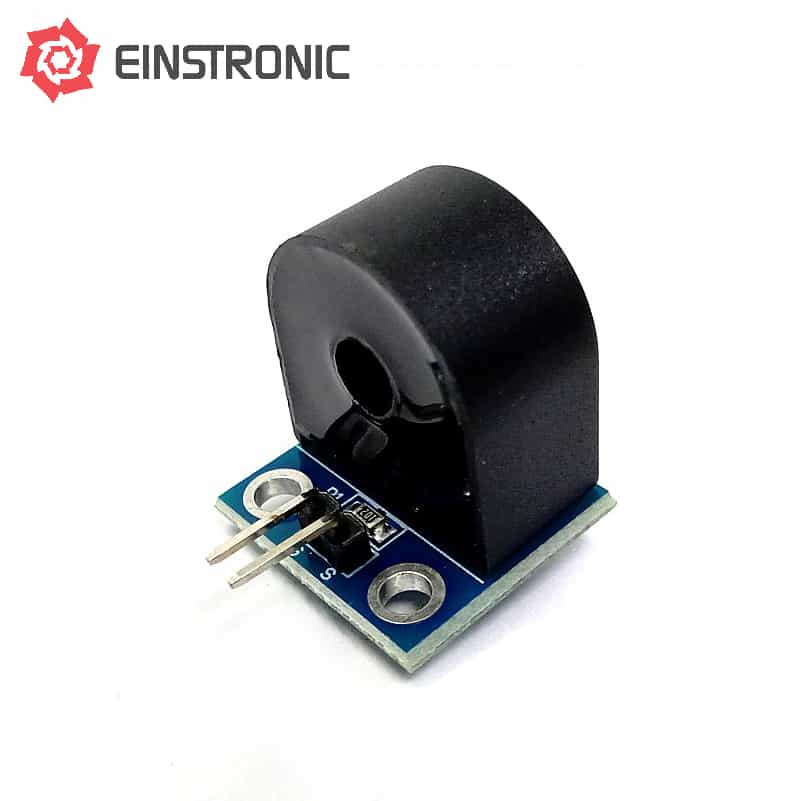

This transformer-based hall effect current converter module is made to be highly sensitive that able to convert single phase 5A current into 5mA current, with the help of a sampling resistor in parallel to the transformer, it can output varying analog voltage.
Note : You must pass the wire that y ...ou want to measure through the hole of the transformer to make this module work properly. You may need a decoupling circuit to make this current sensor work with Arduino since it can only accept 0 – 5Vdc at the analog input pin.
Features
Maximum input current : 5A (pass-through)
Output current : 5mA
Output type : Analog
Dimension : 18.3 x 17 x 20 mm
