About This Item

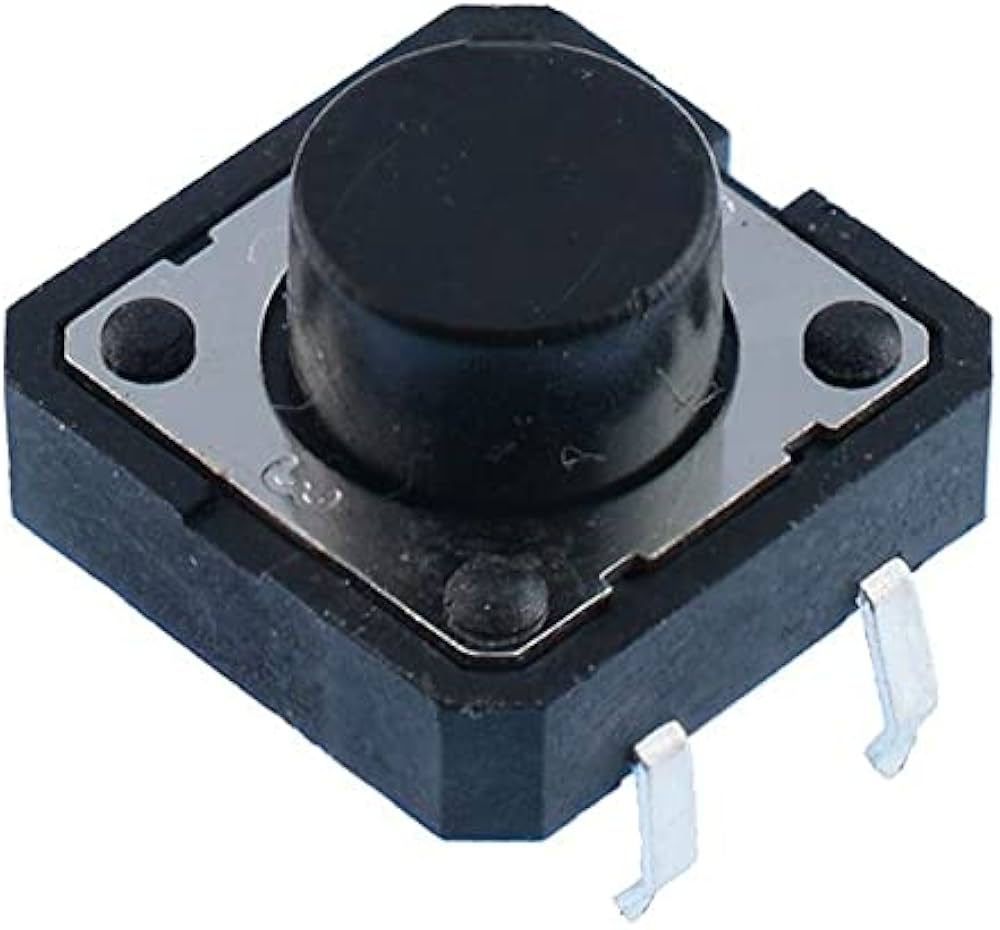

12x12x7mm Tactile 4 Pin Push Button Switch is widely used as a standard input “buttons” on electronic projects. These work best when you mount it on PCB but can also be used on a solderless breadboard for temporary connections in prototypes. The pins are normally open (disconnected) and when the but ...ton is pressed they are momentarily closed and complete the circuit.

This tactile switch also offers reliable dome contact technology and strong tactile feedback, with multiple operating forces to choose from. Applications include telecommunications, consumer electronics, audio/visual, medical devices, testing/instrumentation, and computer/peripherals.

They come in a pack of 5, as they’re pretty handy so you’ll want to keep them around.


Features :

Through-hole design.
Shaft Shape: Round
High operating force (3.0N or 3.6N) suited to automotive equipment requirements
The long life of 300,000 cycles realized despite the high operating force
Middle stroke (1.05mm)
Used in the fields of electronic products, household appliances and more.
High precision mechanism design offers acute operation and long service life.
Compact and lightweight, easy to carry and dismantling.
Good electrical conductivity.


Specifications :

Operating Voltage : 12 V DC
Operating Current : 50mA
On/Off Function : Push to ON
Switch Type : Momentary
Mounting Type : Through-hole
Contact Material : Aluminium alloy
Contact Resistance : 50mΩ
Insulation Resistance : 100MΩ
Operating Temperature Range : -20°C to +70°C
Operation Force : About 3-5N
Operation Stroke : 1.05mm
Body Material : Plastic
Mech. & Electrical Life : 300,000 Cycles
Protection Grade : IP65
Length (mm) : 12
Width (mm) : 12
Height (mm) : 7
Weight (gm) : 1 (approx) (each)


Package Includes :

12x12x7mm Tactile 4 Pin Push Button Switch

* Product Images are shown for illustrative purposes only and may differ from actual product.
