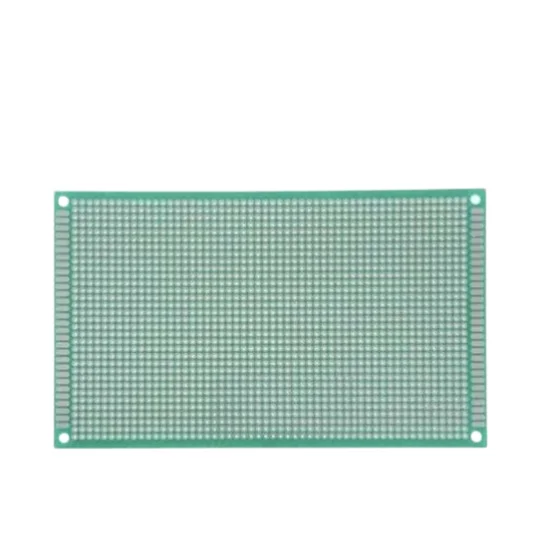

9 x 15 cm Universal PCB Prototype Board Single-Sided 2.54mm Hole Pitch

Introducing the 9 x 15 cm Universal pcb board with single-sided 2.54mm hole pitch for electronics DIY project & prototypes. With a single sided design and a 2.54mm hole pitch, this PCB board offers versatility and convenience for prototyping projects.

With its 9 x 15 cm size this large sized boar ...d provide best space to design and testing in various electronic circuit. Its single sided layout simplify soldering and component placement & make it perfect for both beginners and professional user.

The 2.54mm hole pitch always ensure compatibility with standard electronic component & allow for easy use and experiment. You can also use it in DIY project, education experiment, or professional prototypes. this universal PCB board offers a reliable platform for your electronic projects.

Features
Generous Size: With dimensions of 9x15cm, the PCB Prototype Board provides ample space for circuit design. This larger size accommodates more components and complex circuits for versatile prototyping.
Single-Sided Design: Featuring a single-sided layout, it simplifies circuit assembly and enhances ease of use. This layout reduces complexity, making it suitable for both beginners and experienced users.
Standard Hole Pitch: The board utilizes a standard 2.54mm hole pitch, compatible with common electronic components. This ensures easy insertion and soldering of components without compatibility issues.
Durable Construction: Constructed from high-quality materials, the board offers durability and reliability during use. It withstands soldering and component mounting processes, ensuring long-lasting performance.
Versatile Application: Suitable for a wide range of applications, including DIY projects, prototyping, and educational activities. Its versatility makes it a valuable tool for hobbyists, students, and professionals alike.
Cost-Effective Solution: Providing a cost-effective platform for circuit prototyping and experimentation. It offers an affordable option for testing and refining electronic designs before final implementation.
Enhanced Flexibility: The larger size allows for more complex circuit designs and experiments. This increased flexibility enables users to explore and innovate with their projects.
Specification
Specification Description
Board Size 9 x 15 cm
Hole Pitch 2.54 mm
Side Single-sided
Material FR-4 Glass Epoxy
Copper Thickness 35 μm (1 oz)
Hole Diameter Standard 1.0 mm
Hole Count Varies based on specific model
Conductive Pattern Copper traces on one side
Solder Mask Not applicable
Legend Not applicable
Mounting Holes Typically available at corners
Edge Connector Typically notched or perforated for breaking
Applications Prototyping, DIY electronics projects
Compatibility Accepts through-hole components with 2.54mm pin spacing
Operating Temperature Range Typically -40°C to 130°C
RoHS Compliance Yes
