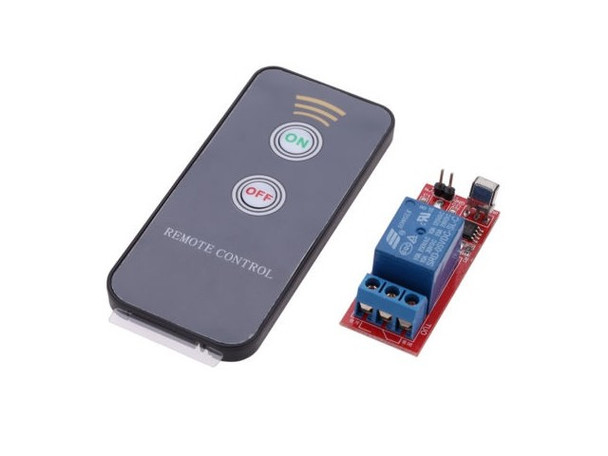

IR Relay Driver Module + Active Remote Controller

1.Power Supply Voltage:12V (VIN+ connects with 12V positive,GND- connects with 12V negative)
2.Board Specification:20*50mm;height 20mm
3.Quiescent Current:<1mA
4.Operating Current:<80mA
5.Remote Control Distance:8m (max)
6.Relay Load Capacity:250V AC/10A;125V AC/10A;30V AC/10A;28V DC/10A
7. ...Operating Principle:when press the ON button on the remote control,then the relay will operate and LED will be on;when press OFF,relay will release and LED will be off so as to achieve 1-channel self-lock remote control switch



Package includes
1pc x R Relay Driver Module + Active Remote Controller
