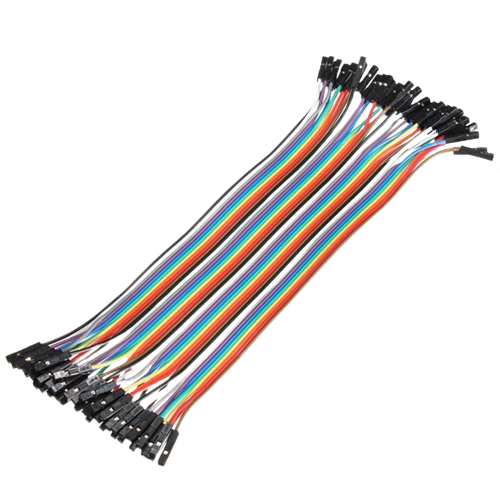

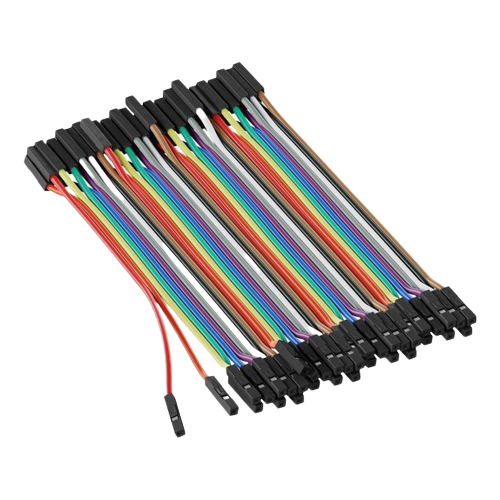

Female to female jumper wires are a type of electronic cable that have female connectors on both ends. They are commonly used to connect components on a breadboard or between different modules in an electronic circuit. Here are some specifications of female to female jumper wires:
1. Pin spacing: ... Female to female jumper wires typically have a pin spacing of 2.54mm (0.1 inch), which is the standard spacing used on most electronic components and breadboards.
2. Wire gauge: The wire gauge of female to female jumper wires can vary, but most wires are between 22AWG to 28AWG in size. Thicker gauge wires can handle more current, but may be less flexible and harder to bend.
3. Connector type: The female connectors on both ends of the jumper wires are usually made of plastic and have a square or rectangular shape. The connectors have small pins that fit into the holes on a breadboard or other electronic component.
4. Length: Female to female jumper wires come in a variety of lengths, ranging from a few centimeters to several meters. The length of the wire should be selected based on the distance between the components being connected.
5. Color: Female to female jumper wires come in a variety of colors, including red, black, green, yellow, blue, and white. The color of the wire can be used to help identify different signals or components in a circuit.
6. Material: The wires in female to female jumper wires are typically made of stranded copper wire, which is flexible and easy to bend. The insulation around the wires is usually made of PVC or silicone, which provides electrical insulation and protection from physical damage
