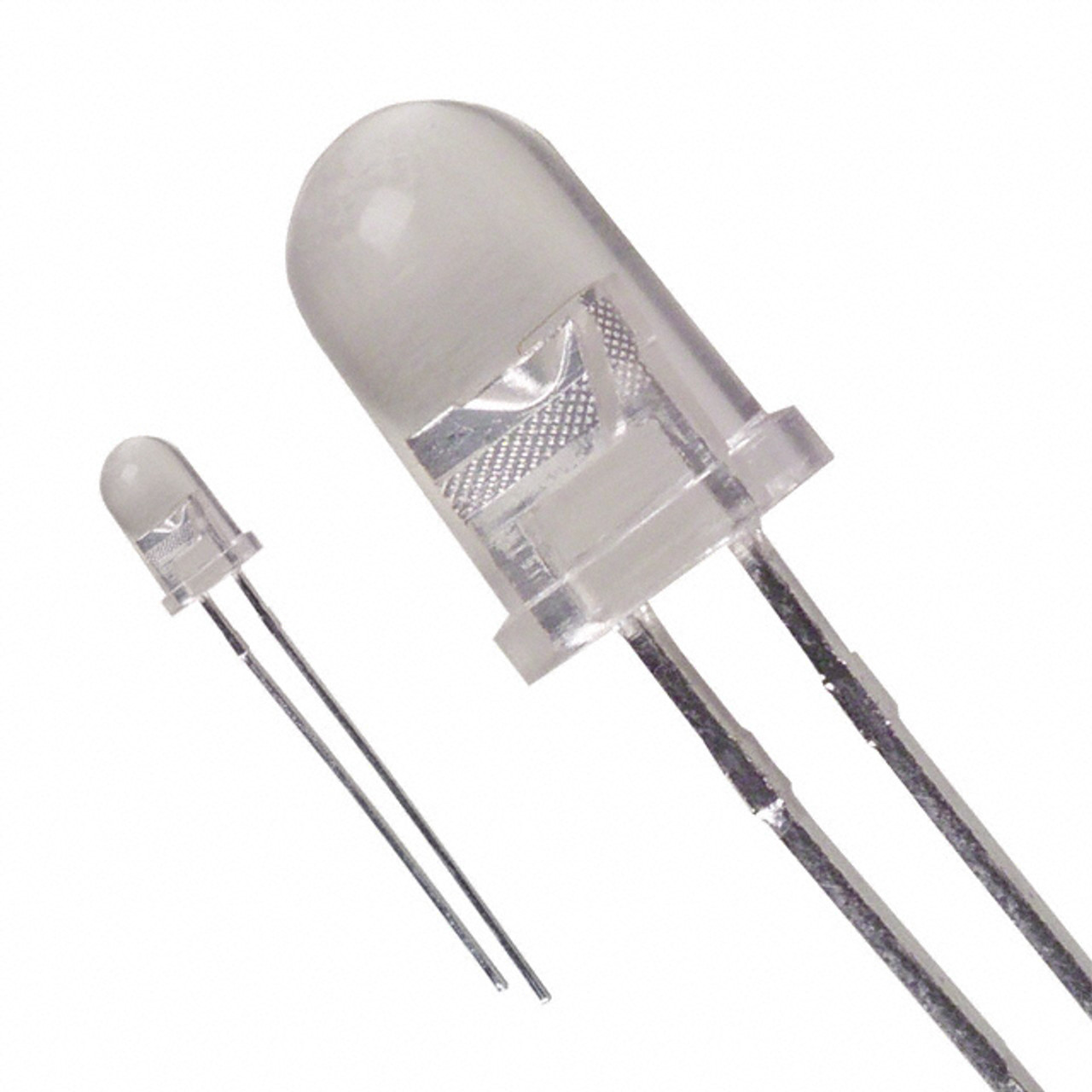

Diffused White 3-5V 5mm LED
Tested With:
About This Item
Standard LED 5mm diameter.
Forward Voltage (V) : 2 Volts for Red, Orange and Yellow
Forward Voltage (V) : 3 Volts for White, Warm White, Bright White, Green and Blue.
Forward current: 20mA (typical)
Connections:
The longer of the 2 leads is the Anode, this MUST be connected to the + (Posi ...tive) side of the Supply.
The shorter of the 2 leads is the Cathode, this MUST be connected to the - (Negative) side of the Supply.
PLEASE NOTE:
All LEDs are tested prior to dispatch.
If a supply voltage greater than the rated forward voltage of the LED is to be used,
then a suitable resistor MUST be wired in series with the LED as shown below.
A suitable series resistor is available at the shop please refer to the table below:-
Supply Voltage LED voltage Resistance Current (approximately) Power rating
3.3V 2V 68 Ohm 20mA 0.25W
3V 15 Ohm 20mA 0.25W
5V 2V 150 Ohm 20mA 0.25W
3V 100 Ohm 20mA 0.25W
6V 2V 220 Ohm 20mA 0.25W
3V 150 Ohm 20mA 0.25W
9V 2V 390 Ohm 20mA 0.25W
3V 330 Ohm 20mA 0.25W
12V 2V 510 Ohm 20mA 0.5W
3V 470 Ohm 20mA 0.5W
