Capacitive Soil Moisture Sensor Corrosion Resistant

Traditional soil moisture sensors are prone to corrosion with a limited lifespan regardless of the measures taken.

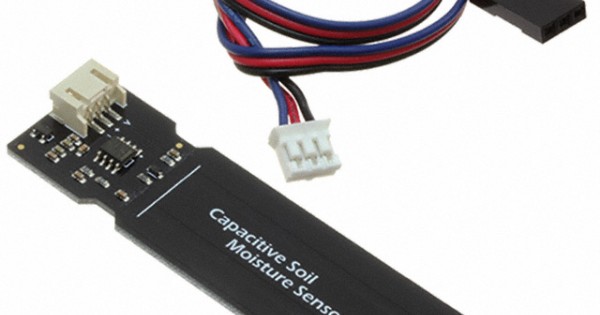

This capacitive soil moisture sensor features no exposed plating and uses capacitive sensing to detect soil moisture. The result is a much more robust sensor without the usual corros ...ion worries!

The sensor has a built-in voltage regulator that supports 3.3V, meaning it can work with a 3.3V development board as well as 5V. To use this with the Raspberry Pi, an ADC (analogue to digital convertor) will need to be used (such as an ADC HAT) to convert the analogue signal from the sensor.

Sensor type: Analogue
Operating voltage: 3.3 VDC
Output voltage: 0-3.0 VDC
Interface: PH2.54 3-pin
Size: 98 x 23mm
Package Contents
1x Capacitive Soil Moisture Sensor
1x 2.54mm 3-pin cable
