2S Litihum Ion Charger Controller BMS
Tested With:
About This Item
2S Li-ion Lithium Battery Charger Protection Module Board (FDC-2S-02) is mostly used for protecting the lithium ion batteries from over-charging, over – discharging, over-current loads, and short circuit protection. It is highly accurate voltage detection circuit and ensure that the battery pack is ...absolutely safe and reliable
Model Name FDC-2S-2
Charging Voltage 8V
Overcharge Detection Per Cell 4.32 to 4.38V
Overdischarge Detection Per Cell 2.9V
Over Charge Voltage 4.25-4.35v±0.05v
Over Discharge Voltage 2.3-3.0v±0.05v
Max Continuous Current 3A
Max Peak Current 5A
Working Temperature -40 to + 50 ℃
Storage Temperature -40 to +80 ℃
Small Current Less Than 3uA
Life Cycle More Than 50000 Hours
Resistance Less Than 45m

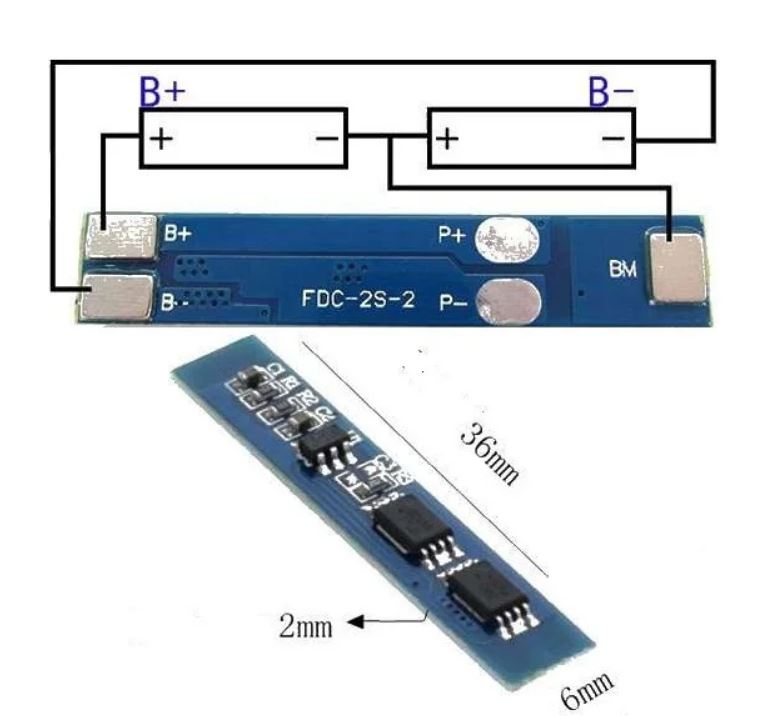

Size 36*6*1.0mm

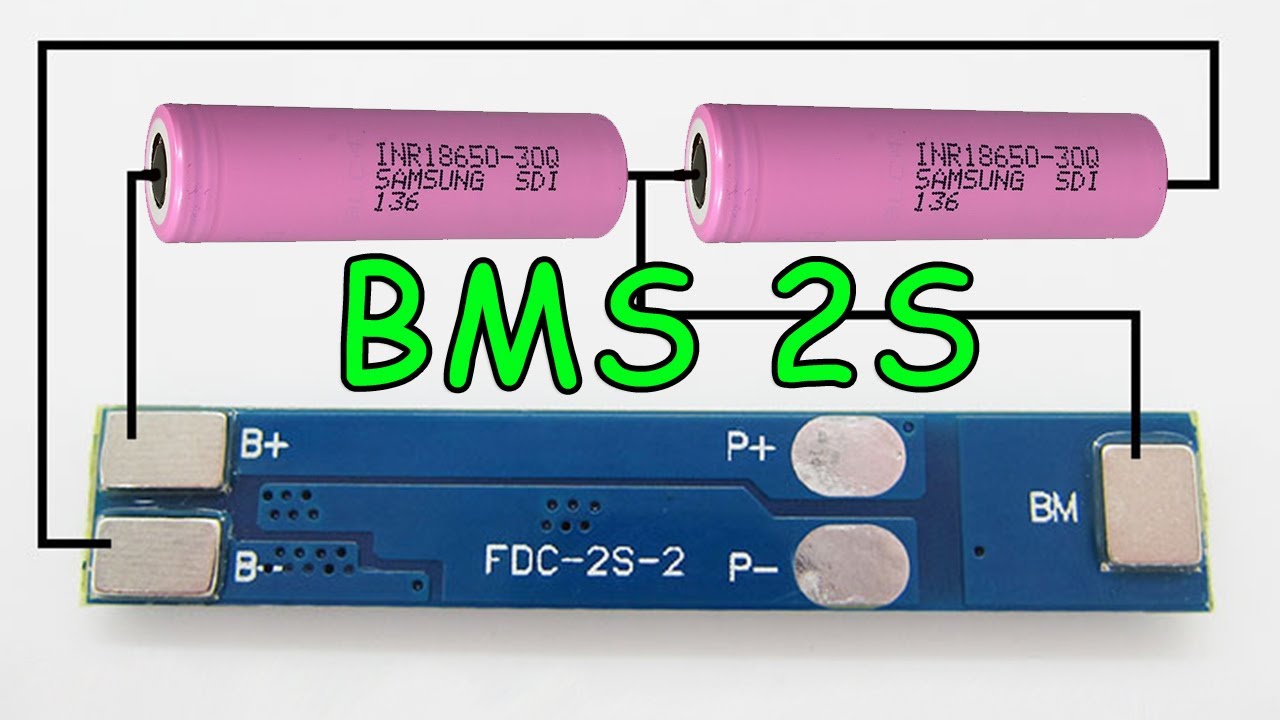

B +Connector Connected To The Battery Positive
B- Connector Connected Battery Negative
MBConnector Connect The Battery 1 To The Connection Point Before Battery 2
P +Connector Charge / Discharge Side Positive (Shared Charge / Discharge Side)
P- Connector Connection / Discharge Terminal Negative (Charge / Discharge Side Shared)
